ZKLDF (Axial/Radial Angular Contact Ball Turntable Bearing)
ZKLDF (Axial/Radial Angular Contact Ball Turntable Bearing)

Starting quantity:1件

Product Featur…

ONLINE

Product

Features

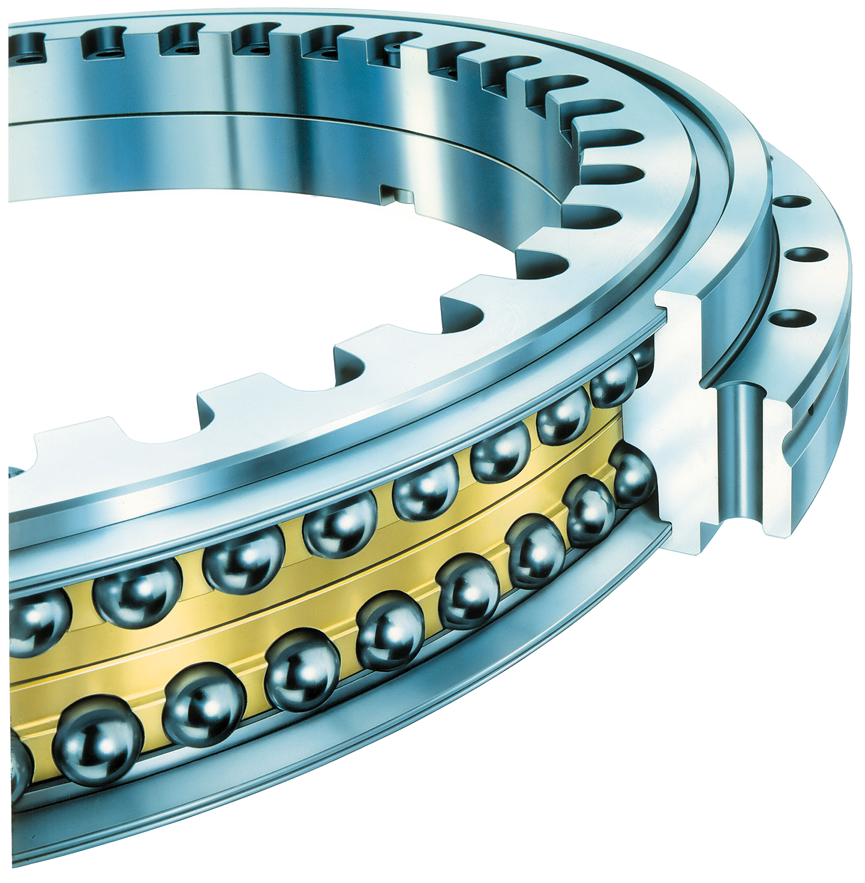

  ZKLDF Rotary Table Bearing: Axial/radial bearings and axial angular contact ball bearings are ready-to-fit high precision bearings for high precision applications with combined loads. They can support radial loads and axial loads from both sides as well as tilting moments and are particularly suitable for bearing arrangements with high requirements for running accuracy, for example in rotary tables, face plates, milling heads and reversible clamps.Due to the fixing holes in the bearing rings, the units are very easy to fit. The bearings are radially and axially preliminary load after fitting.

Series

Introduction

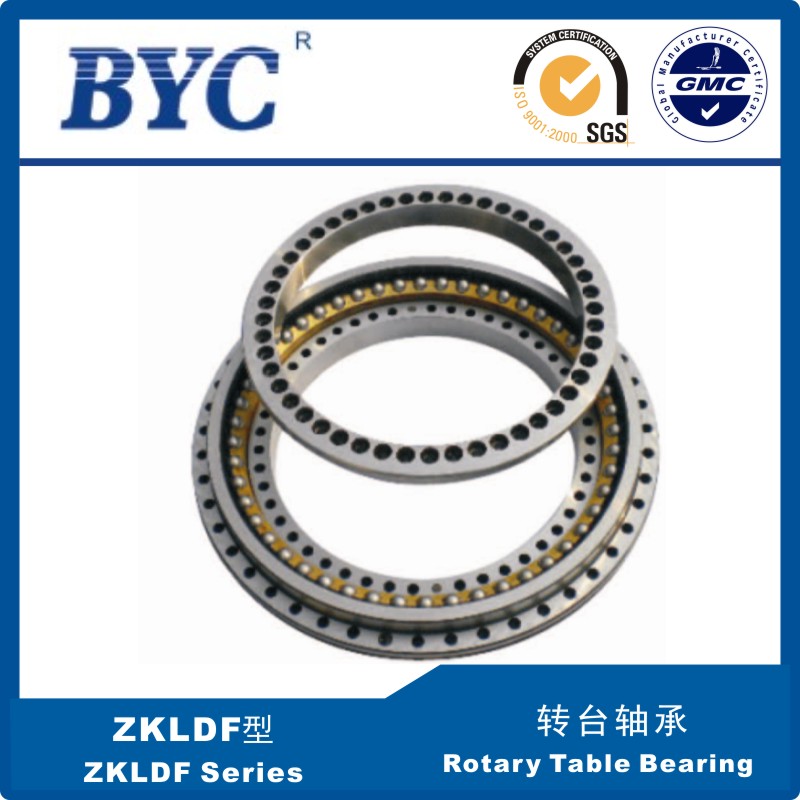

ZKLDF Series rotary table bearings



ZKLDF are low-friction, high accuracy for very high speeds, high axial and radial loads and high

demands on tilting rigidity. These bearings are

particularly suitable for precision applications

 involving combined loads. Their preferred areas of use are bearing arrangements in rotary tables and honing heads as well as measurement

and testing equipment.

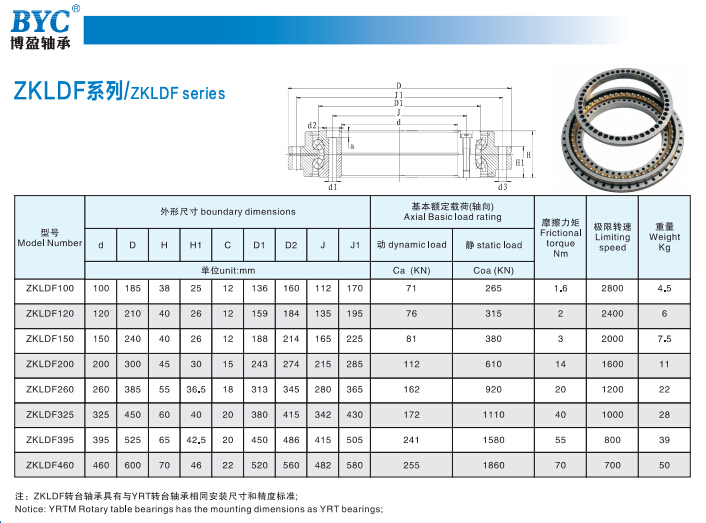

Series

Model No.

(Click the link below to view detailed parameters of each model)

 ZKLDF100 , ZKLDF120 , ZKLDF150 , ZKLDF180 , ZKLDF200 , ZKLDF260 ,

 ZKLDF325 , ZKLDF395 , ZKLDF460 , ZKLDF580

Applications

•Precision machine tools

•precision Turntable, NC rotary table

•Rotation part of Machine tools

•Inspection instrument,Medical equipment

•Indexing plate of other precision machines etc

3D Model of Crossed Roller Bearing and YRT Rotary Table Bearing for Robotic and CNC design,

 The link is: http://yun.baidu.com/share/home?uk=35432805&view=album
