Cross roller bearing
Cross roller bearing
Your current location:Home > Product Center > Cross roller bearing
Model CRBH (Integrated Outer/Innner Ring,without Mounting Holes)
Model CRBH (Integrated Outer/Innner Ring,without Mounting Holes)

Starting quantity:1件

Product Feature …

ONLINE

Product

Feature

  BYCCrossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.

Series

Introduction

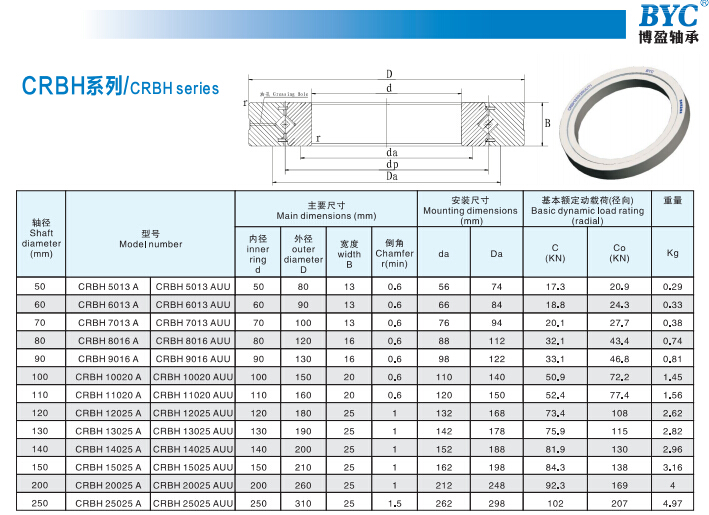

Model CRBH (Integrated Outer/Innner Ring,without Mounting Holes)

With an integrated Inner/Outer Ring structure;can be used for both inner-ring rotation and outer-ring rotation.

Series

Model No.

(Click the link below to view detailed parameters of the model)

CRBH5013A, CRBH6013A, CRBH7013A, CRBH8016A, CRBH9016A

CRBH10020A, CRBH11020A

CRBH12025A, CRBH13025A, CRBH14025A, CRBH15025A, CRBH20025A, CRBH25025A


Application

 •Industrial Robotic arm,Reducer drive

•precision Turntable,NC rotary table

•Rotation part of Machine tools

•Inspection instrument,Medical equipment

• Aviation equipment,Military radar etc

3D Model of Crossed Roller Bearing and YRT Rotary Table Bearing for Robotic and CNC design,The link is:

http://yun.baidu.com/share/home?uk=35432805&view=album

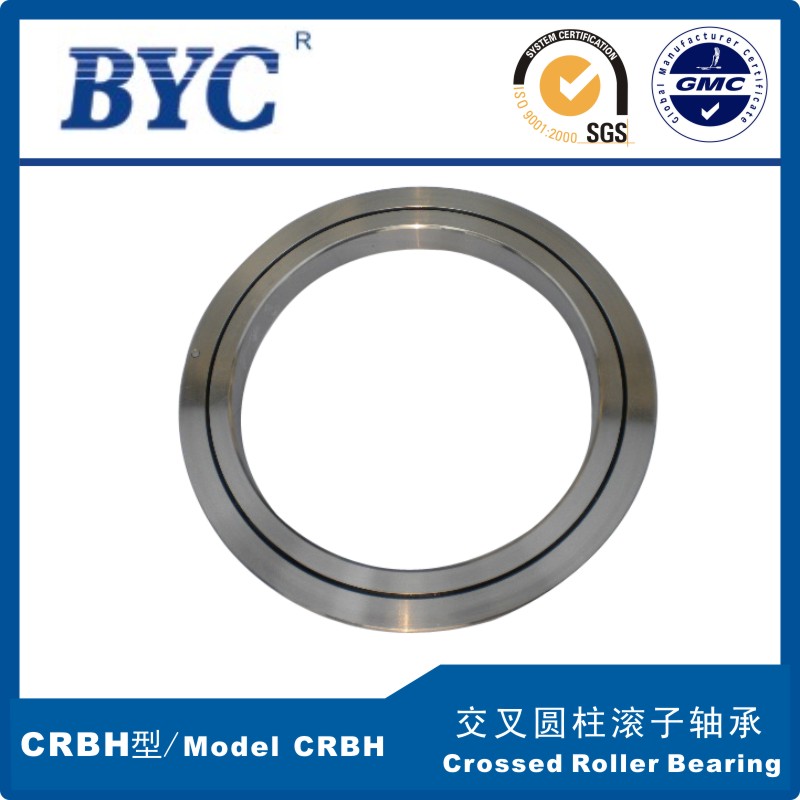

CRBH Crossed Roller bearing.jpg
