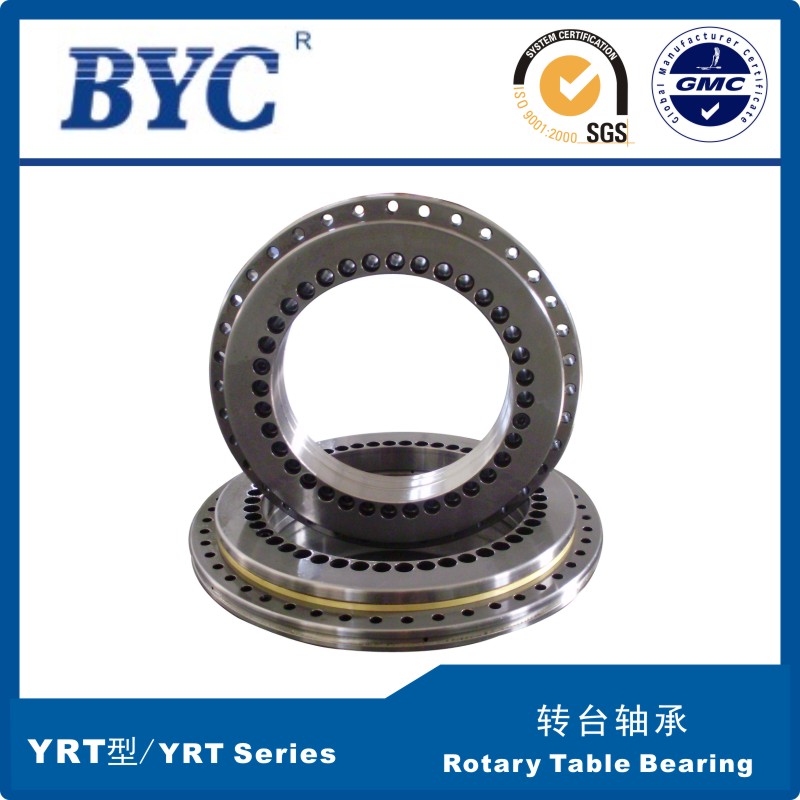

Product Features | Axial radial bearings YRT are axial and radial combined cylindrical roller bearings, including two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and radial preload, For the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing accuracy. | |||||||||||||||||

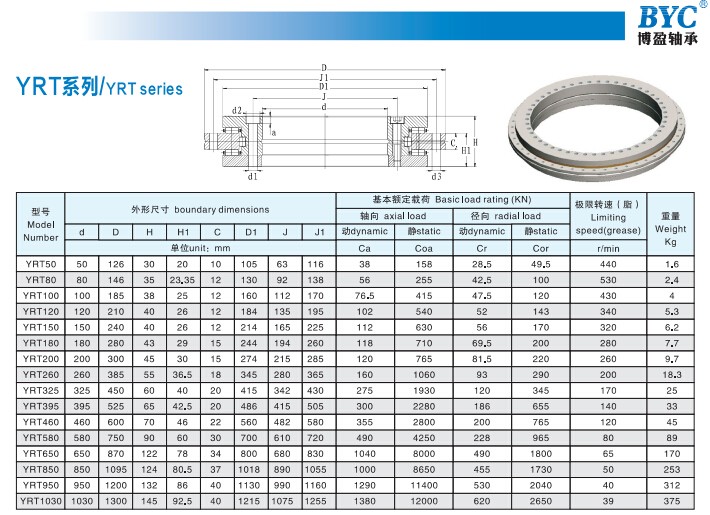

Series Introduction | Axial/radial bearings YRT series rotary table bearings|Turntable bearing | |||||||||||||||||
Series Model No. | (Click the link below to view detailed parameters of each model) YRT50、YRT80、YRT100、YRT120、YRT150、YRT180、YRT200、 | |||||||||||||||||
| Applications | •Precision machine tools •precision Turntable, NC rotary table •Rotation part of Machine tools •Inspection instrument,Medical equipment •Indexing plate of other precision machines etc | |||||||||||||||||
3D Model of Crossed Roller Bearing and YRT Rotary Table Bearing for Robotic and CNC design,
The link is: http://yun.baidu.com/share/home?uk=35432805&view=album
YRT Rotary Table Bearing Installation Instructions-BYC
YRT Rotary Table Bearing Installation Instructions-BYC.pdf
