Cross roller bearing
Cross roller bearing
Your current location:Home > Product Center > Cross roller bearing
Model RB (Separable Outer Ring,For Inner Ring Rotation)
Model RB (Separable Outer Ring,For Inner Ring Rotation)

Starting quantity:1件

Product Feature …

ONLINE

Product

Feature

  BYCCrossed roller bearings are lightweight, compact bearings with thinnest possible inner and

outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one

bearing to carry loads in all directions including radial, axial and moment loads.

Series

Introduction

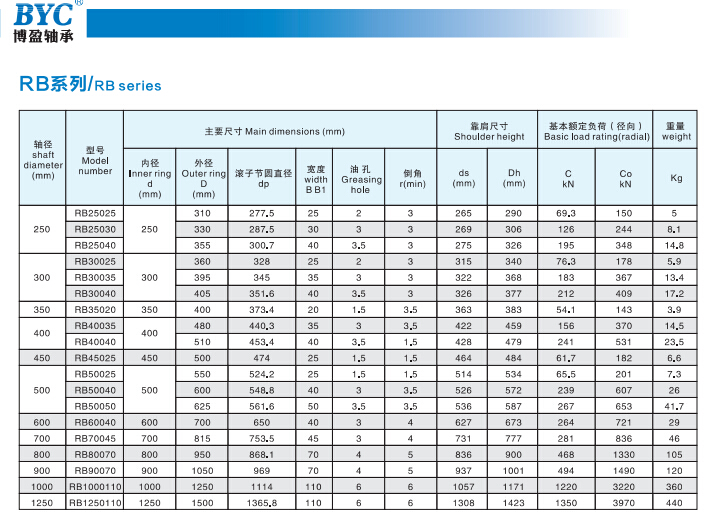

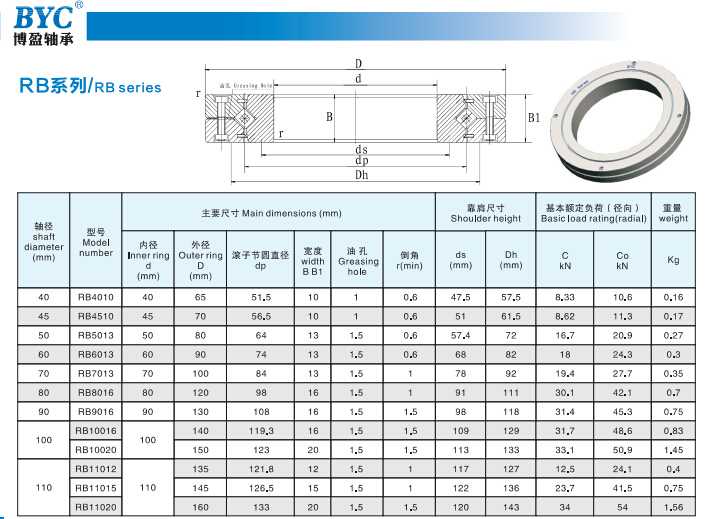

Model RB (Separable Outer Ring,For Inner Ring Rotation)

 With thinnest possible inner and outer rings because the outer ring is split while the inner ring is integrated into the main body. It is being used in cases where a high rotational accuracy of the inner ring is required.

Series

Model No.

(Click the link below to view detailed parameters of each model)

RB4010UUCC0RB4510UUCC0RB5013UUCC0RB6013UUCC0RB7013UUCC0RB8016UUCC0RB9016UUCC0

RB10016UUCC0RB10020UUCC0RB11012UUCC0RB11015UUCC0RB11020UUCC0RB12016UUCC0

RB12025UUCC0RB13015UUCC0RB13025UUCC0RB14016UUCC0RB14025UUCC0RB15013UUCC0

RB15025UUCC0RB15030UUCC0RB16025UUCC0RB17020UUCC0RB18025UUCC0RB19025UUCC0

RB20025UUCC0RB20030UUCC0RB20035UUCC0RB22025UUCC0RB24025UUCC0RB25025UUCC0

RB25030UUCC0RB25040UUCC0RB30025UUCC0RB30035UUCC0RB30040UUCC0RB35020UUCC0

RB40035UUCC0RB40040UUCC0RB45025UUCC0RB50025UUCC0RB50040UUCC0RB50050UUCC0

RB60040UUCC0RB70045UUCC0RB80070UUCC0RB90070UUCC0RB1000110UUCC0RB1250110UUCC0

Application

 •Industrial Robotic arm,Reducer drive

•precision Turntable,NC rotary table

•Rotation part of Machine tools

•Inspection instrument,Medical equipment

• Aviation equipment,Military radar etc

3D Model of Crossed Roller Bearing and YRT Rotary Table Bearing for Robotic and CNC design,The link is:

http://yun.baidu.com/share/home?uk=35432805&view=album

RB 01.jpg

RB 02.jpg

RB 03.jpg
